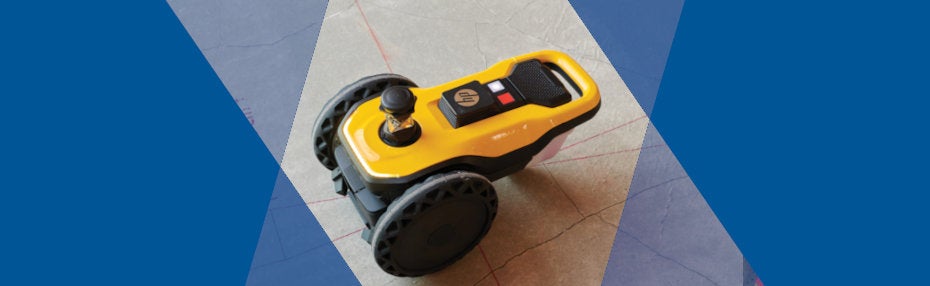

Robotic solution for autonomous layouts
We’ve combined our printing know how and robotics technology to revolutionize construction site layouts bringing breakthrough efficiency.
Groundbreaking performance and productivity
- Improve layout productivity by as much as ten times.
- Autonomous printing with obstacle avoidance.
- Printed onslab text helps deliver executions as per plan.
Accurate layouts
- Precise printing to complete every project accurately.
- Complex layouts spot-on, laying out intricate arcs and circumferences.
- Raise the bar of predictability, minimizing redos and with great rigour.

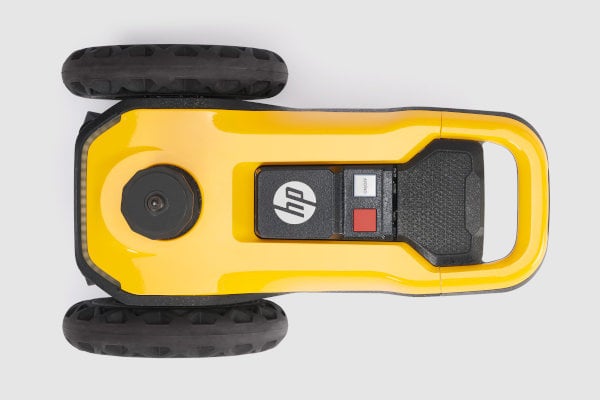

One easy solution to do it all

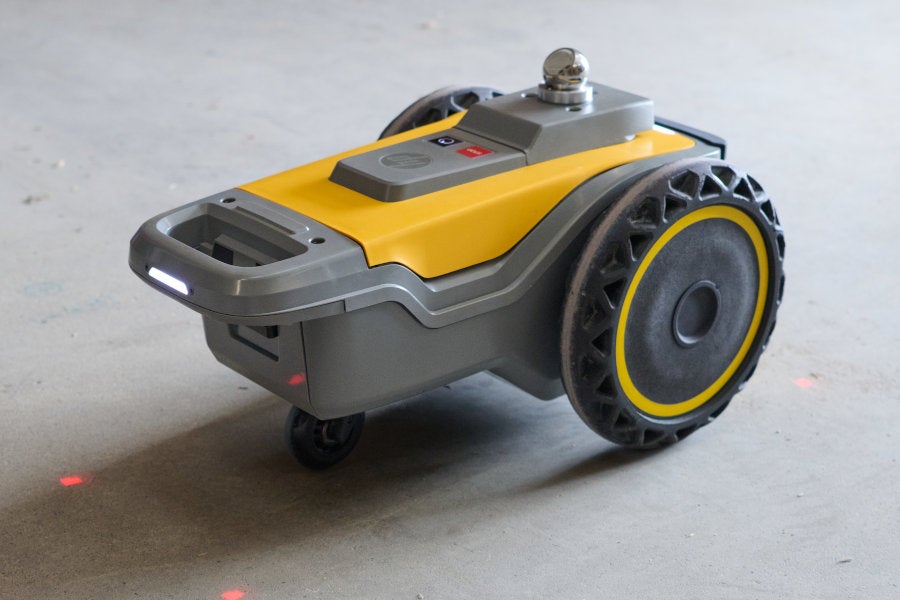

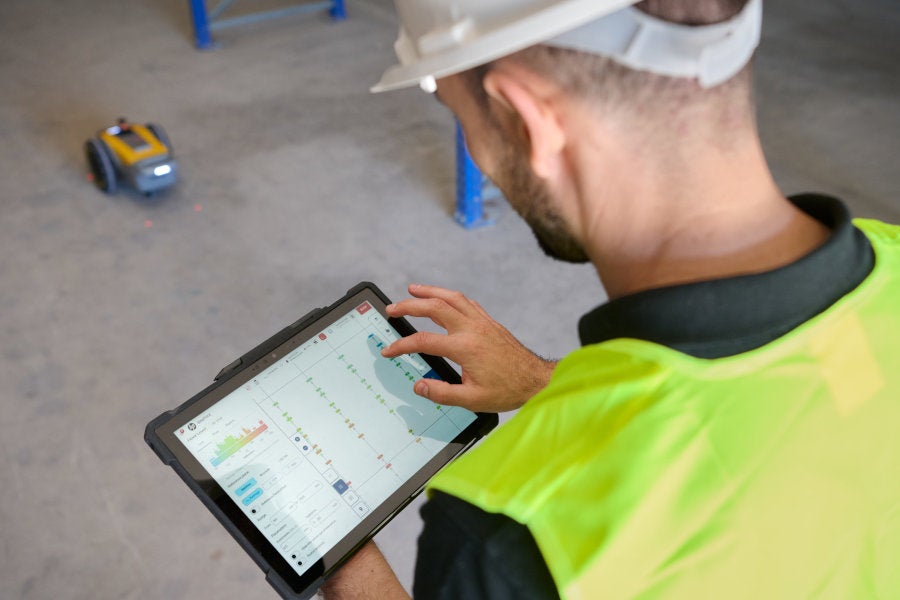

- Simple layout management with cloud-based tools.
- Easily print on different surfaces thanks to HP inks expertise.
- Compact design that fits in a portable case for effortless transport.
Brand prints 1,136 points in a Data Center in just 5 hours, 5x faster than traditional processes
“The implementation of the HP SitePrint has been effortless thanks to the flexibility of the setup, easy to use plugin tools, responsive customer support and unlimited access to training resources.” Tanya Peddy, Virtual Field Technician Manager

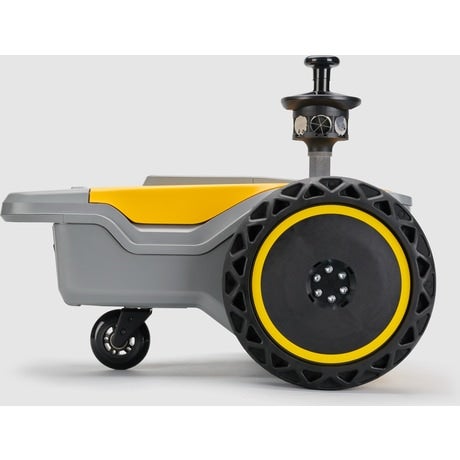

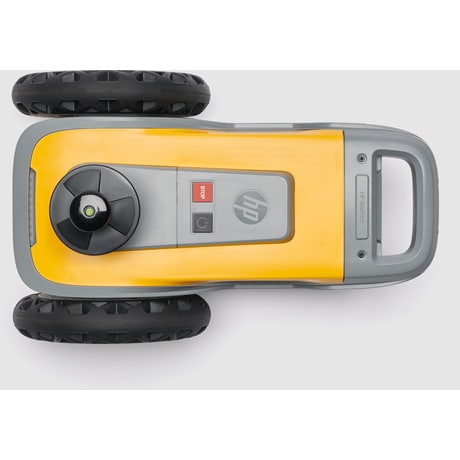

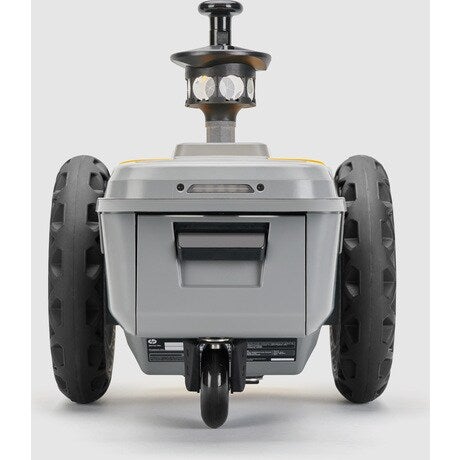

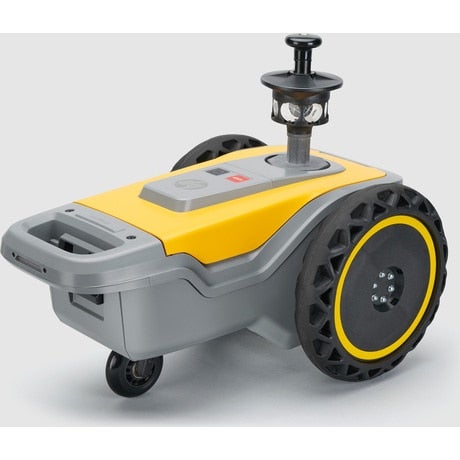

Specifications
| General | |
|---|---|
| General | HP SitePrint Robot |
| Product | A2PS9A |

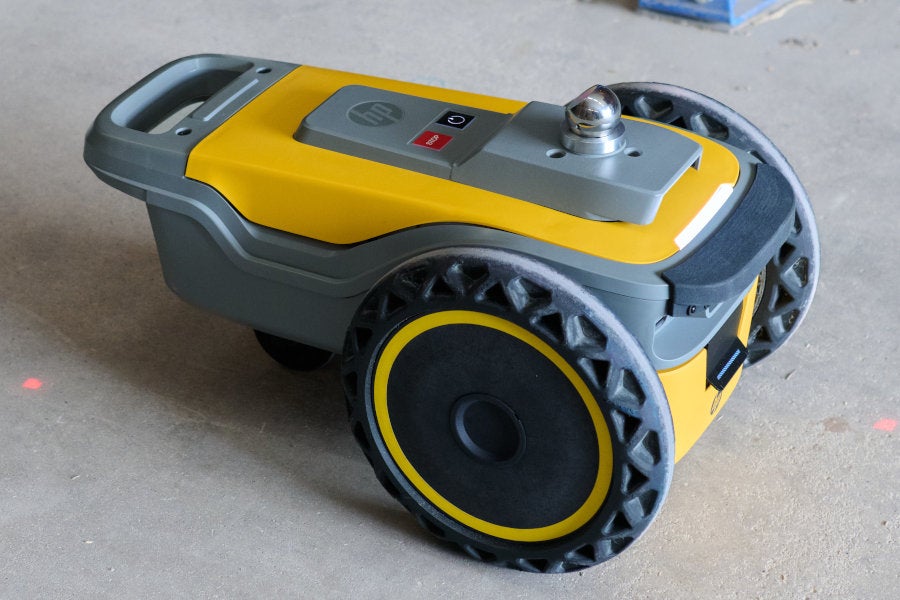

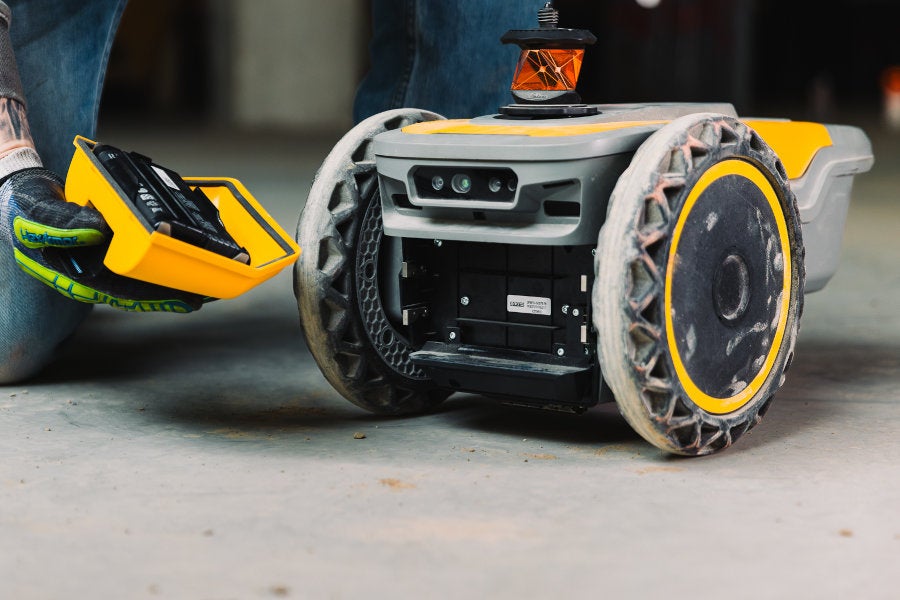

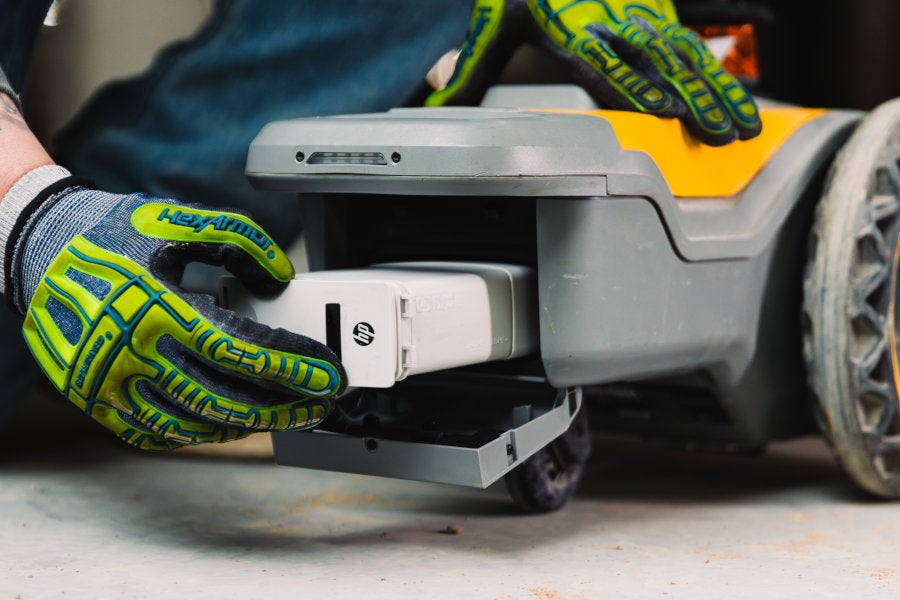

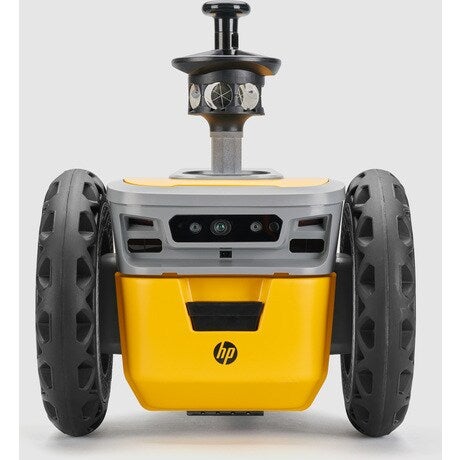

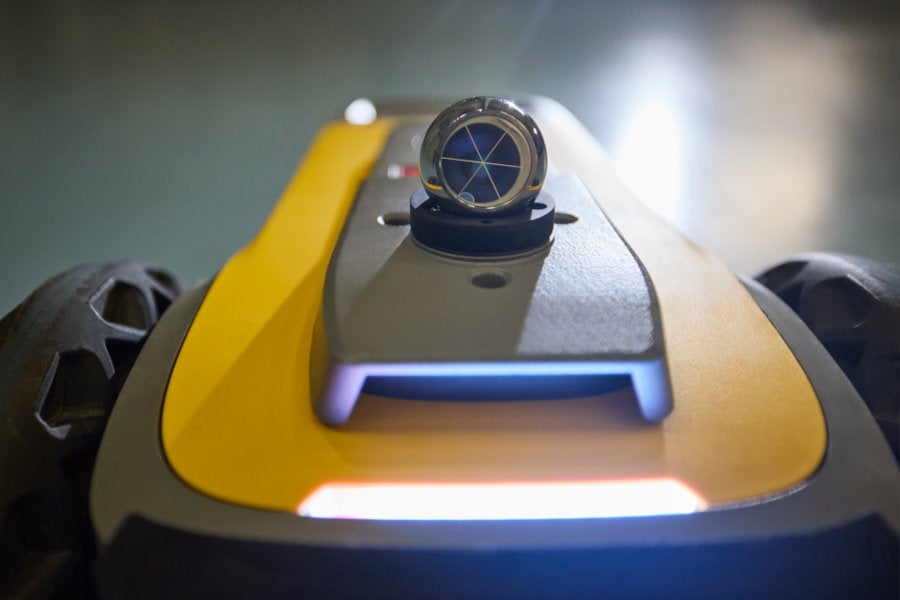

| Power management | Exchangeable Lithium-Ion battery Each battery has a runtime of 4 hours. By combining both batteries, you can sustain continuous operation throughout an entire day shift. |
| Application | Layout for building construction: interior walls, Mechanical, Electrical, Plumbing, Fire Protection, HVAC and Formwork |
| Material | Porous surfaces: polished and rough concrete, tarmac and wood. Non-porous surfaces: terrazzo, vinyl and epoxy. |
| Obstacle avoidance | 4 Safety sensors to avoid falloffs 3 LiDAR sensors to avoid collisions Depth Camera for HP Smart Navigation System |
| Step Overcoming Capacity | 0.74 in (19 mm) |
| Printing | |
| Ink cartridge | 1 cartridge (400ml Ink System) |
| Printing speed | Up to 5,314 ft/h (1.260 m/h) |
| Navigation speed | 8.267 ft/h (2.520 m/h) |
| Minimum printable width | 0.08 in (2 mm) |
| Maximum printable width | 2 in (51 mm) |
| Printable elements | Lines, Text, dashed-lines, curved lines, circumferences |
| Printhead to floor distance | 0.74 in (19 mm) |
| Accuracy tolerance | 1/8 in (3 mm) |
| Ink | |
| 7J3Q9A | HP SitePrint 100 Blue SB Semi-Permanent |
| 76Y83A | HP SitePrint 101 Red SB Semi-Permanent |
| 76Y82A | HP SitePrint 102 Black SB Permanent |
| 7J3R0A | HP SitePrint 103 Black WB Permanent |
| 7J3R1A | HP SitePrint 104 Cyan WB Permanent |
| 7J3R2A | HP SitePrint 105 Magenta WB Permanent |
| 76Y80A | HP SitePrint 107 Cyan WB Semi-Permanent |
| 76Y81A | HP SitePrint 108 Magenta WB Semi-Permanent |
| 76Y84A | HP SitePrint 109 Cleaning Fluid |
| Environmental | |
| Protection | IP44/NEMA1 |
| Maximum slope | 2.5º |
| Recommended operating temperature range | From 14ºF (-10ºC) to 122ºF (50ºC) |
| Operating humidity | 20%-80% |
| Operating altitude | 2,000 m |
| Dimensions | |
| Dimensions | Printer only: 20.6 x 12.4 x 10.2 in (52.5 x 31.7 x 26.1 cm) With transportation case: 2.46 x 19.3 x 14.4 in (62.5 x 49.0 x 36.5 cm) |
| Weight | Printer only: 19.8 lb (9.0kg) With transportation case: 42.1 lb (19.1kg) |
| Connectivity | |
| RTS Compatibility | Leica iCR70/80 Leica TS16 Topcon LN-150 Trimble RTS573 Trimble S9 |
| Connectivity | Bluetooth, 4G, WiFi |
| Certifications | |
| Certifications | United States & Canada CAN/UL 3100 TÜV Certified; EU MD compliant EN 1175, EN 60204-1, EN ISO 3691, EN ISO 13849 |
| Electromagnetic | Compliant with Class A requirements, including USA (FCC rules), Canada (ICES), EU (RED), Australia (ACMA), New Zealand (RSM) |
| Environmental | WEEE, EU RoHS, REACH, CE marking compliant |
1 Up to ten times the productivity’ claim is based on data from pilot case studies where HP SitePrint was used– comparing the HP SitePrint performance either to the manual chalk-line layout that was done before HP SitePrint was used on the same job or to the customer estimation on the time/resources needed based on experience with similar projects. Exact improvement factors will vary from project to project and can be influenced by multiple factors, such as the line density or the dimensions of the site.
2 Battery life was tested at 68ºF (20ºC). The battery retains over 75% of its initial capacity after 300 charging cycles.
3 Accuracy tolerance of +/- 1/8in (+/- 3mm) average while operating with a 3” Total Station at a distance between 15.4ft and 98.4ft” (5m and 30m”)
